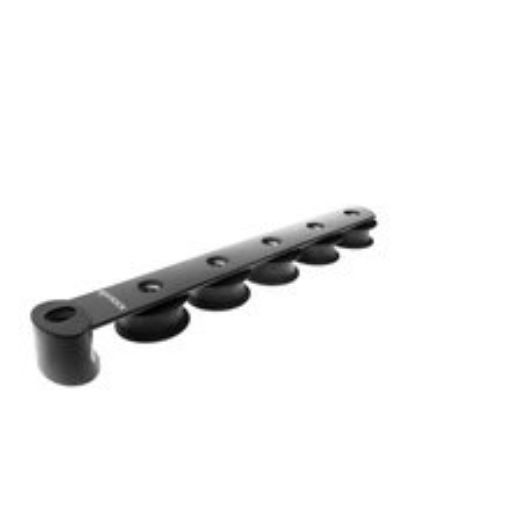

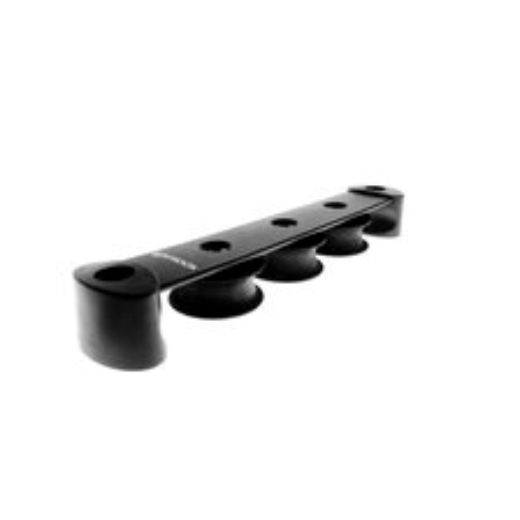

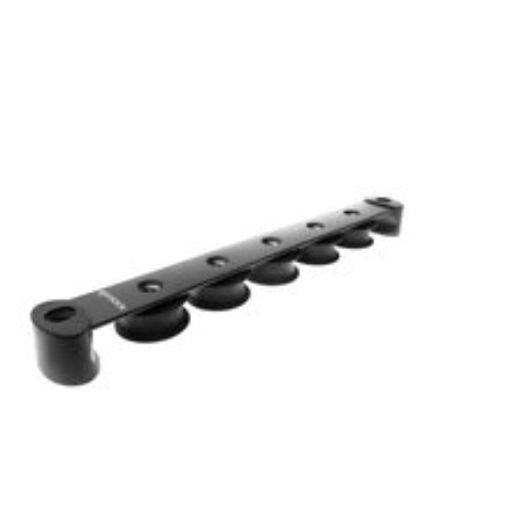

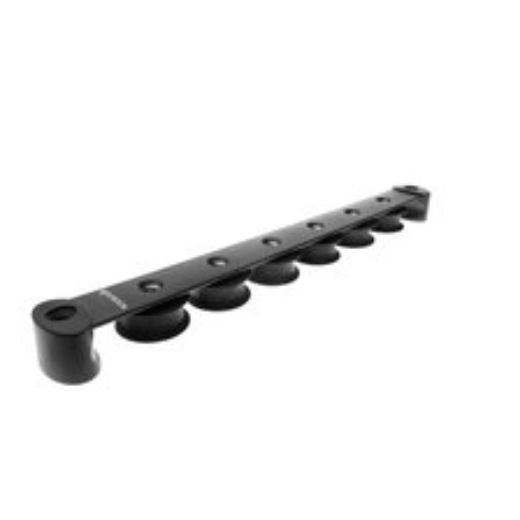

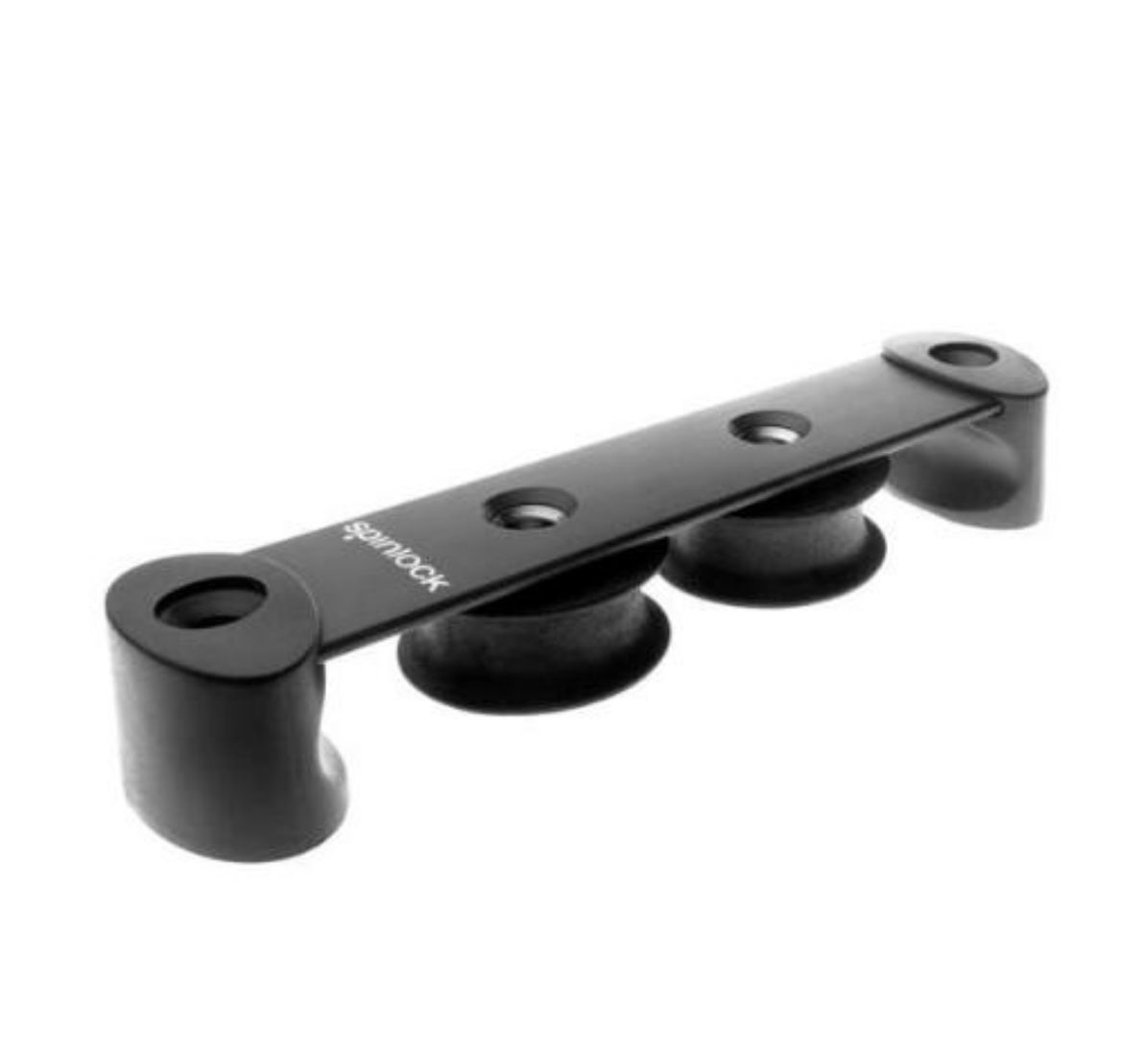

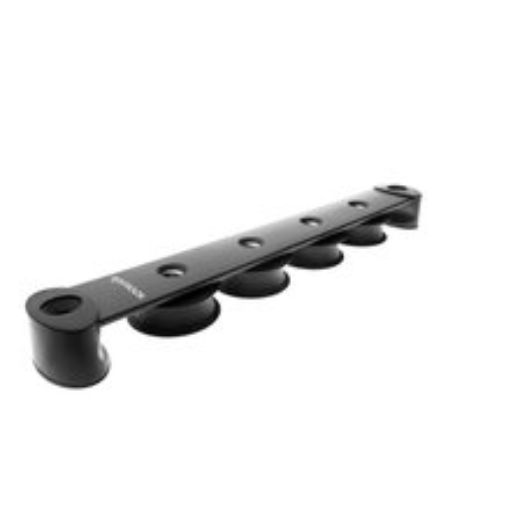

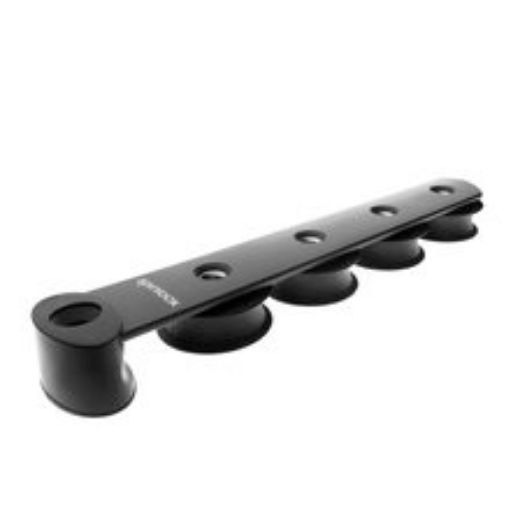

Spinlock 38mm symmetric deck organiser, suitable for yachts upto 35' with lower-med load applications.

• Minimal overall length
• Efficient bearings surface reduces winch effort and increases halyard life
• Integral end fairings for safe side loading

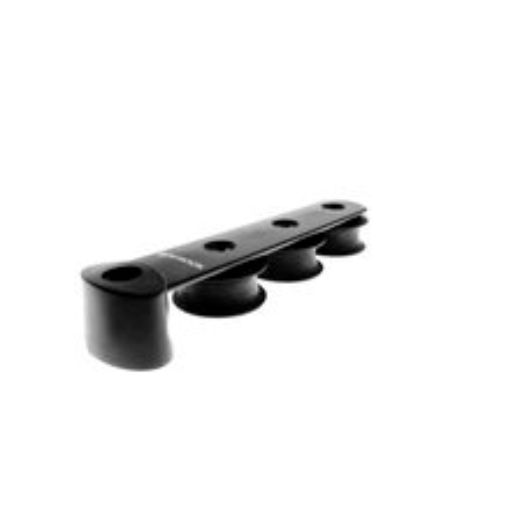

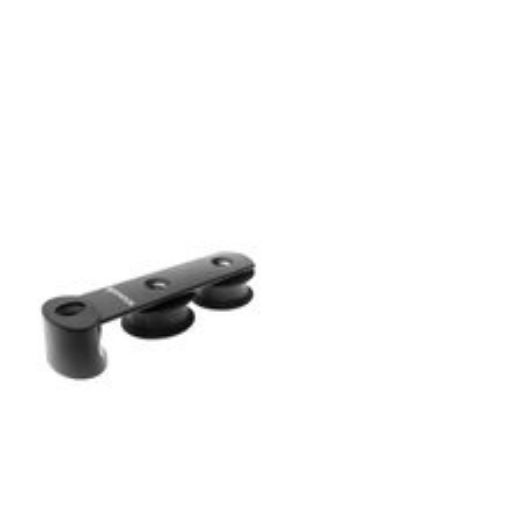

• Asymmetric version reduces deck footprint and saves weight
• Can ‘stack’ for limited deck area or adding extra capacity.
• Vari-camber feature: Designed to follow the curve of the deck when fitted

• Sheave Diameter/Type

  38mm (1 1/2") composite

  SWL per sheave

  600kg (1320lbs)

  Total SWL per unit

  No of sheaves x 300kg (660lbs)

  Line Diameter

  Up to 12mm (1/2")

• Weights

  115g (4.0oz) for 2 sheave organiser
  30g (1.1oz) per extra sheave

  Fasteners

  M6 (1/4") CSK (not supplied)
