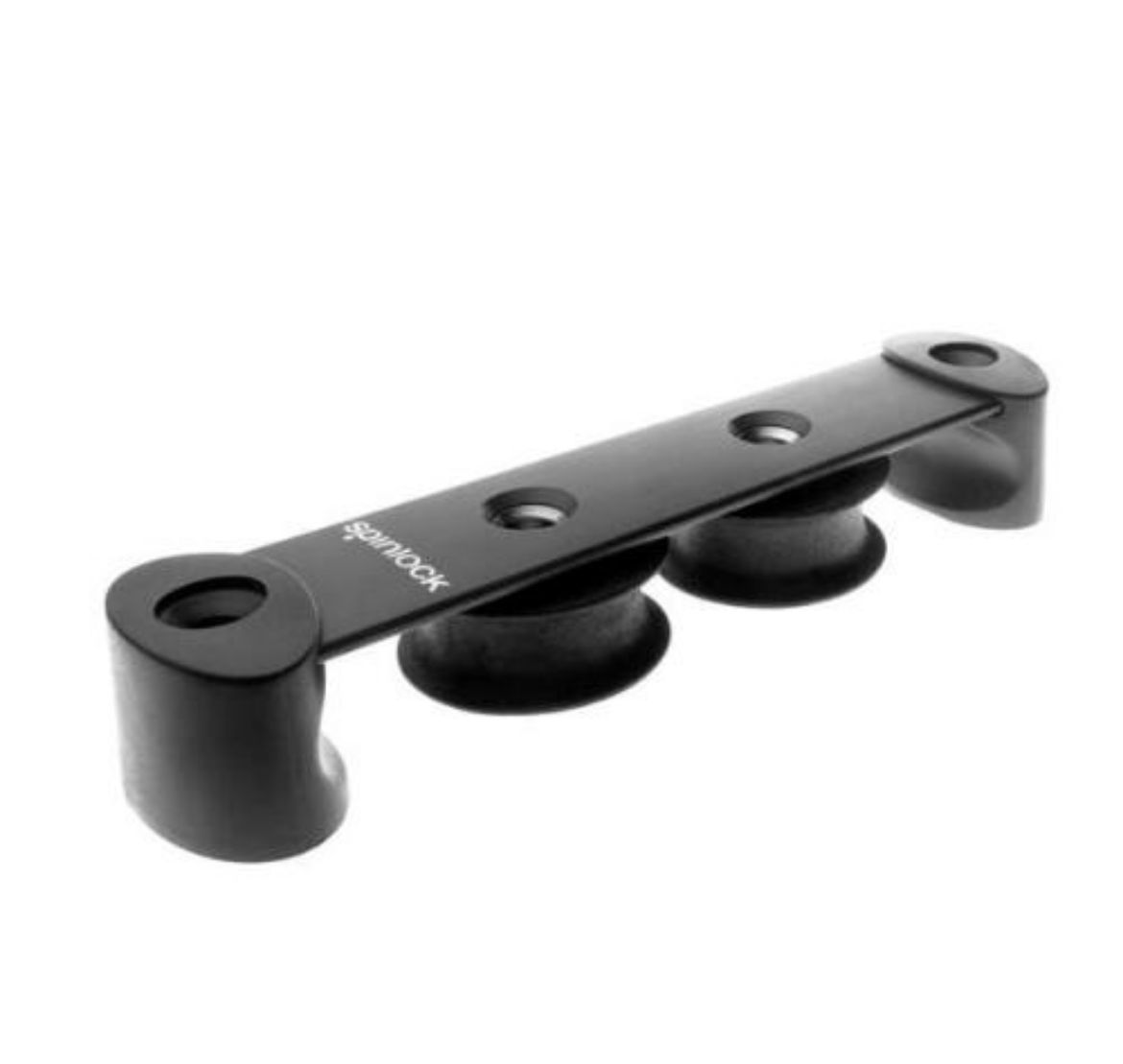

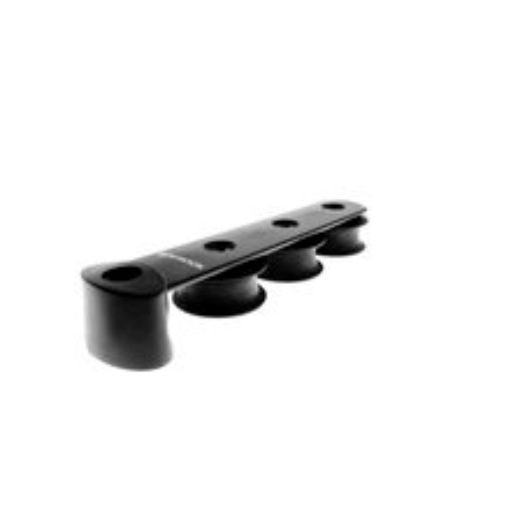

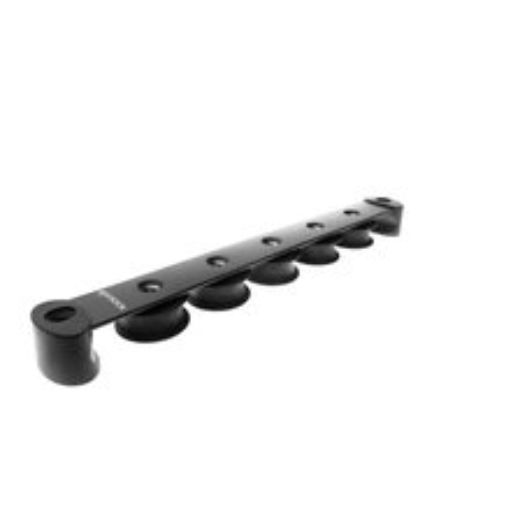

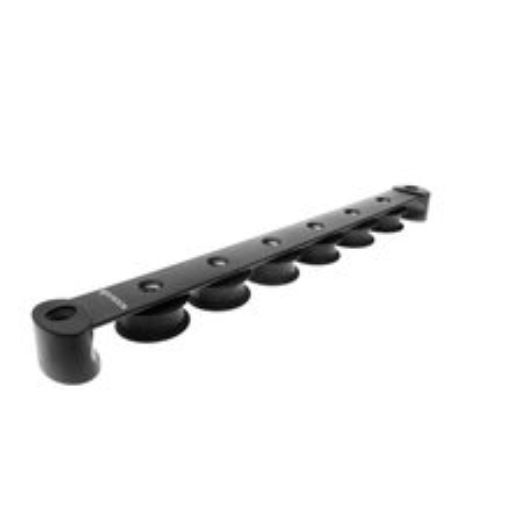

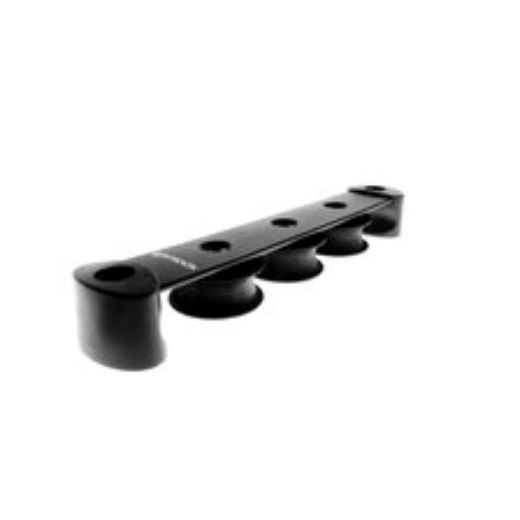

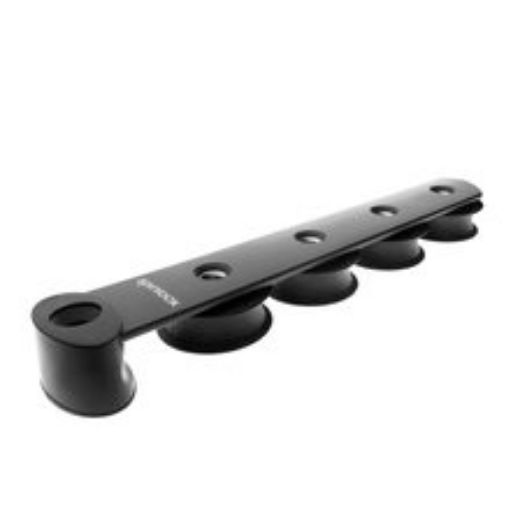

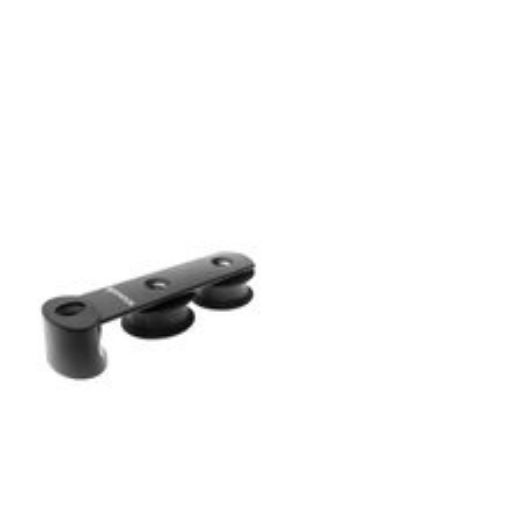

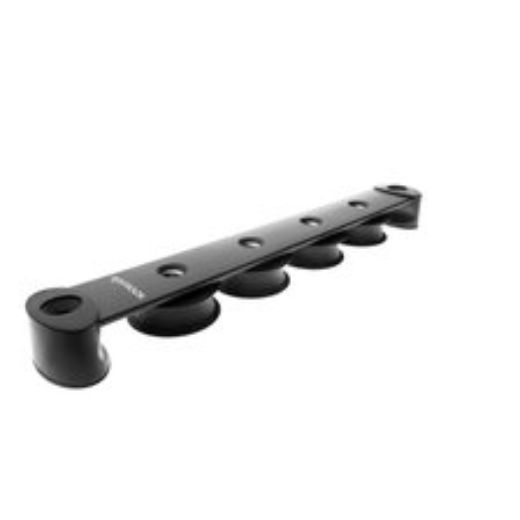

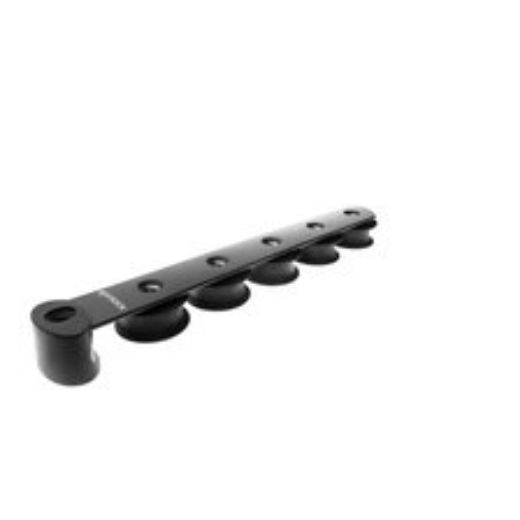

Spinlock 50mm symmetric deck organiser, suitable for yachts upto 45' with lower-med load applications.

• Minimal overall length
• Efficient bearings surface reduces winch effort and increases halyard life
• Integral end fairings for safe side loading
• Asymmetric version reduces deck footprint and saves weight
• Can ‘stack’ for limited deck area or adding extra capacity.
• Vari-camber feature: Designed to follow the curve of the deck when fitted

• Sheave Diameter/Type

  50mm (1 1/2") composite

  SWL per sheave

  1000kg (1320lbs)

  Total SWL per unit

  No of sheaves x 500kg (660lbs)

  Line Diameter

  Up to 14mm (1/2")



  Fasteners

  M8 CSK (not supplied)

•

  Spinlock drilling guide
